1. Architechture Project

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

/src/
  ├── Controllers
  │     ├── LoginServlet.java
  │     ├── HomeServlet.java
  │     ├── LogoutServlet.java
  ├── Models
  │     ├── User.java
  ├── DALs
  │     ├── UserDAO.java
  ├── Utils
  │     ├── DBContext.java
/webapp/
  ├── WEB-INF/
  │     ├── web.xml
  ├── views/
  │     ├── pages
  │     │     ├── login.jsp
  │     │     ├── login-content.jsp
  │     │     ├── home.jsp
  │     │     ├── home-content.jsp
  │     ├── layouts
  │     │     ├── layout.jsp

2. Why restructure from Model 1?

Model 1 issues:

Model 2 (MVC) benefits:

3. Migration Plan

4. Refactoring MVC

Models

(A) User.java (Models)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

package Models;

public class User {
    private String username;
    private String password;

    public User() {}
    public User(String username, String password) {
        this.username = username;
        this.password = password;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }
}

(B) UserDAO.java (DALs - Data Access Layer)

1
2
3
4
5
6
7
8
9

package DALs;

import Models.User;

public class UserDAO {
    public boolean checkLogin(String username, String password) {
        // ...
    }
}

Controllers

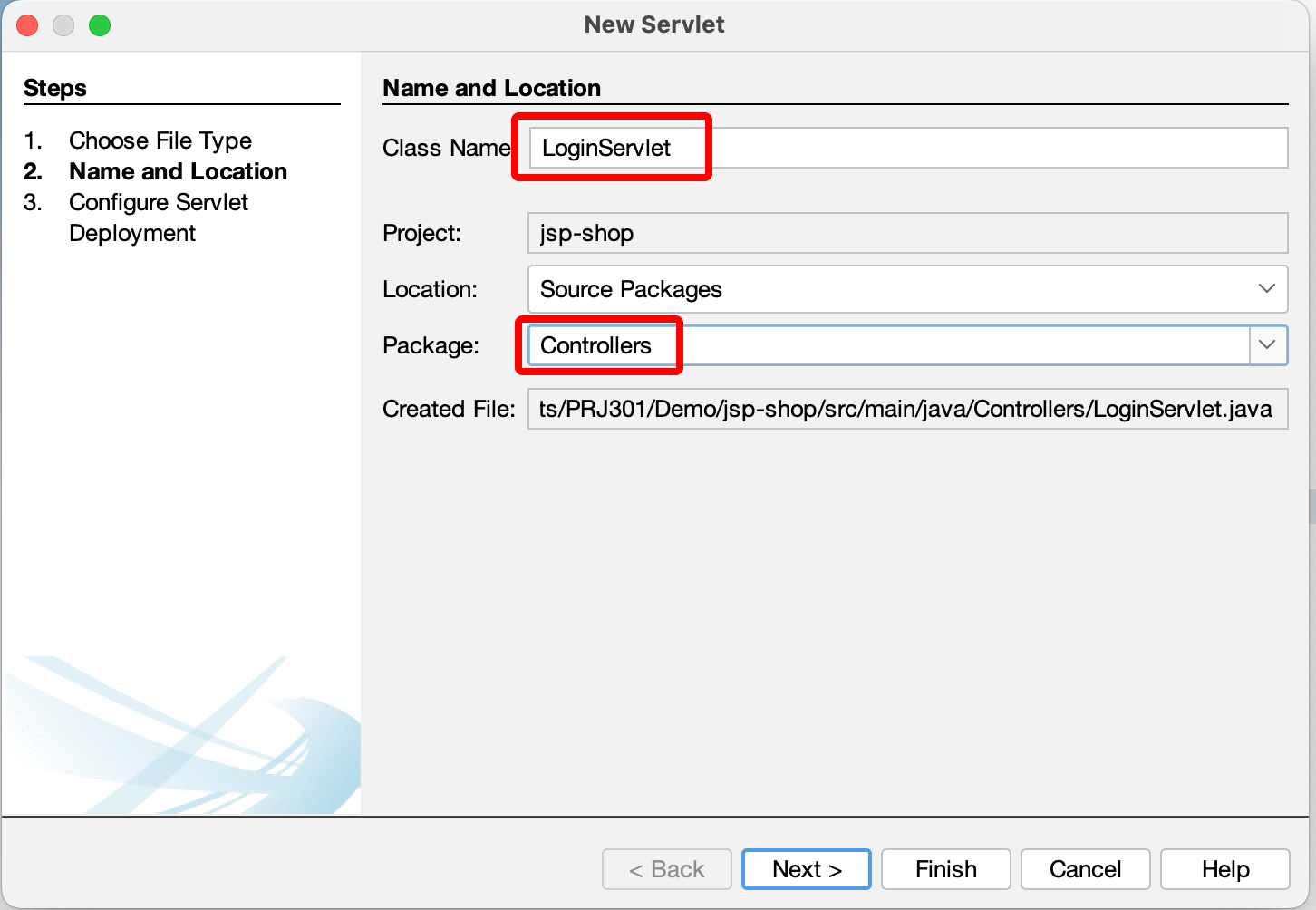

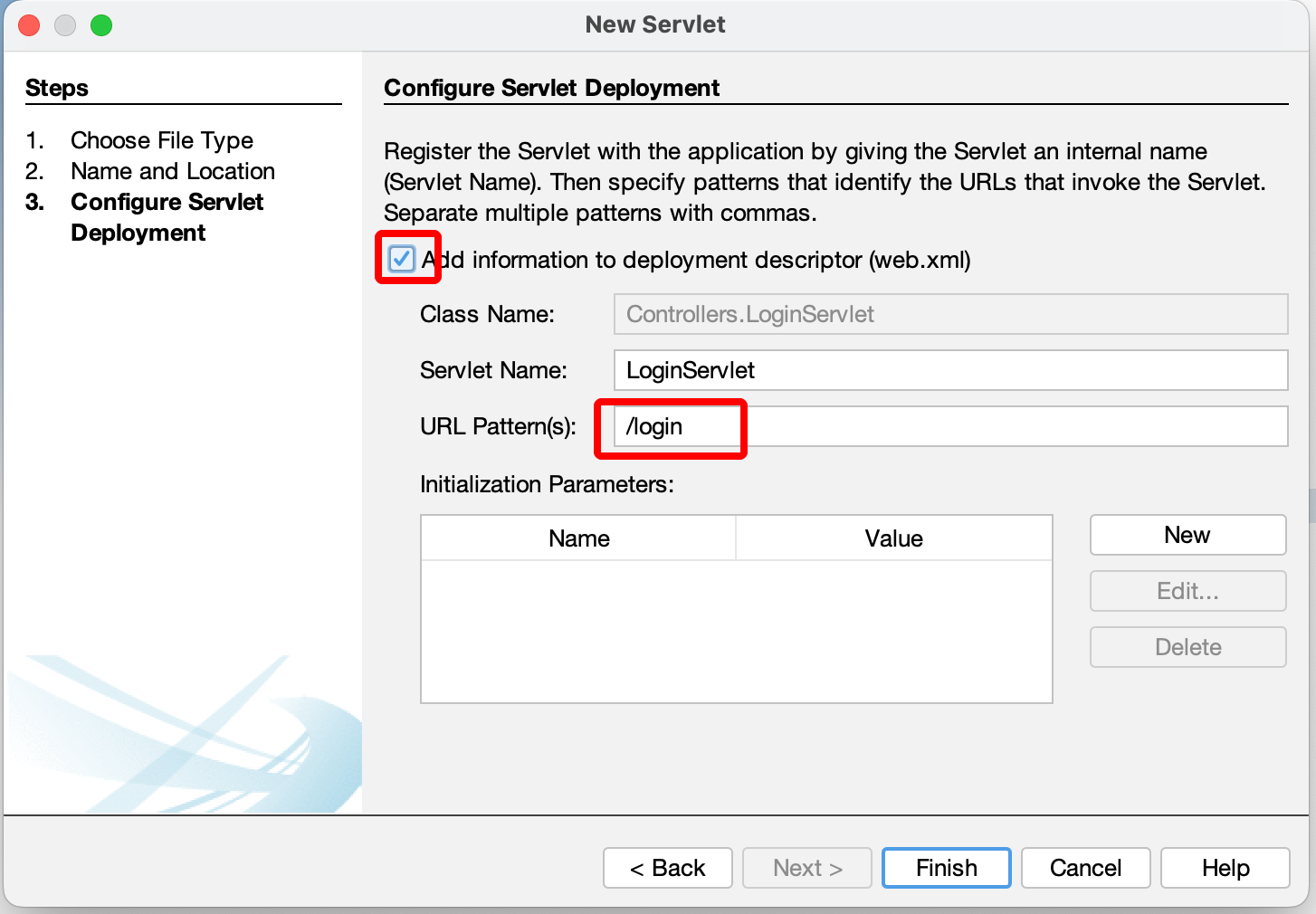

(C) Create LoginServlet.java (Controllers)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

package Controllers;

import DALs.UserDAO;
import java.io.IOException;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.Cookie;
import jakarta.servlet.http.HttpServlet;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;

public class LoginServlet extends HttpServlet {

    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response)
    throws ServletException, IOException {
        request.setAttribute("contentPage", "login_form_content.jsp");
        request.getRequestDispatcher("/views/pages/login.jsp").forward(request,response);
    }

    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response)
    throws ServletException, IOException {
        String username = request.getParameter("username");
        String password = request.getParameter("password");

        UserDAO users = new UserDAO();
        String uName = users.CheckUser(username, password);
        if (uName != null) {
            Cookie cookie1 = new Cookie("username", uName);
            cookie1.setMaxAge(60 * 60); // 1 hour
            response.addCookie(cookie1);

            response.sendRedirect(request.getContextPath() + "/home");
        } else {
            request.setAttribute("loginError", "Username or password are failed!");
        }
    }
}

(D) LogoutServlet.java (Controllers)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

package Controllers;

import java.io.IOException;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.Cookie;
import jakarta.servlet.http.HttpServlet;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;

public class LogoutServlet extends HttpServlet {
    @Override
    protected void doPost(HttpServletRequest request, HttpServletResponse response)
    throws ServletException, IOException {
        Cookie[] cookies = request.getCookies();
        if (cookies != null) {
            for (Cookie c : cookies) {
                if ("username".equals(c.getName()) || "id".equals(c.getName()) ||"gender".equals(c.getName())) {
                    c.setMaxAge(0);
                    response.addCookie(c);
                }
            }
        }

        response.sendRedirect(request.getContextPath() + "/login");
    }
}

(E) HomeServlet.java (Controllers)

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

package Controllers;

import java.io.IOException;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.Cookie;
import jakarta.servlet.http.HttpServlet;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;

public class HomeServlet extends HttpServlet {
    @Override
    protected void doGet(HttpServletRequest request, HttpServletResponse response)
    throws ServletException, IOException {
        String username = null;
        Cookie[] cookies = request.getCookies();
        if (cookies != null) {
            for (Cookie c : cookies) {
                if ("username".equals(c.getName())) {
                    username = c.getValue();
                    break;
                }
            }
        }

        if (username == null) {
            response.sendRedirect(request.getContextPath() + "/login");
            return;
        }

        request.setAttribute("contentPage", "home_content.jsp");
        request.setAttribute("username", username);
        request.getRequestDispatcher("/views/pages/home.jsp").forward(request,response);
    }
}

Views

(F) login.jsp (Views)

1
2
3

<jsp:include page="../layouts/layout.jsp" >
    <jsp:param name="pageTitle" value="Login - JSP Shop" />
</jsp:include>

(G) login_form_content.jsp

1
2
3
4
5
6
7
8
9
10
11
12
13
14

<h2 class="mb-4">Login Form</h2>
<form action="${pageContext.request.contextPath}/login" method="post" class="col-md-4">
    <div class="mb-3">
        <label for="username" class="form-label">Username</label>
        <input type="text" id="username" name="username" class="form-control" required>
    </div>

    <div class="mb-3">
        <label for="password" class="form-label">Password</label>
        <input type="password" id="password" name="password" class="form-control" required>
    </div>

    <button type="submit" class="btn btn-primary">Login</button>
</form>

(H) home.jsp (Views)

1
2
3

<jsp:include page="../layouts/layout.jsp" >
    <jsp:param name="pageTitle" value="Home - JSP Shop" />
</jsp:include>

(I) home_content.jsp

1
2
3
4
5

<h2>Welcome, ${username} (Cookie Based)</h2>

<form action="${pageContext.request.contextPath}/logout" method="post">
    <button type="submit" class="btn btn-outline-primary">Logout</button>
</form>

web.xml Changes

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

    <?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.1" xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd">

    <servlet>
        <servlet-name>LoginServlet</servlet-name>
        <servlet-class>Controllers.LoginServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>LoginServlet</servlet-name>
        <url-pattern>/login</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>Logout</servlet-name>
        <servlet-class>Controllers.LogoutServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>Logout</servlet-name>
        <url-pattern>/logout</url-pattern>
    </servlet-mapping>

    <servlet>
        <servlet-name>HomeServlet</servlet-name>
        <servlet-class>Controllers.HomeServlet</servlet-class>
    </servlet>
    <servlet-mapping>
        <servlet-name>HomeServlet</servlet-name>
        <url-pattern>/home</url-pattern>
    </servlet-mapping>

    <welcome-file-list>
        <welcome-file>
            login
        </welcome-file>
    </welcome-file-list>
    <servlet-mapping>
        <servlet-name>default</servlet-name>
        <url-pattern>/assets/*</url-pattern>
    </servlet-mapping>
    <session-config>
        <session-timeout>
            30
        </session-timeout>
    </session-config>
</web-app>
